MODEL: VI-20_A AIR The truly concealed hinge with Angle Connector Weight Capacity : 20 kg Finish : Grey

• The hinge is characterised by compactness and by a small size; it incorporates an integrated soft close mechanism for decelerated closing.

• It is fitted to the top and bottom panel of the cabinet.

• For min. 18 mm thick wooden doors and for aluminium-framed doors.

• Max. door weight 20 Kg.

• Max. dimensions of the door : height 2100 mm, width 600 mm.

• 16.5 mm deep metal cup.

• L = 2.5 mm

• 105° opening.

• Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors.

• Fixed K = 4 mm for aluminium-framed doors.

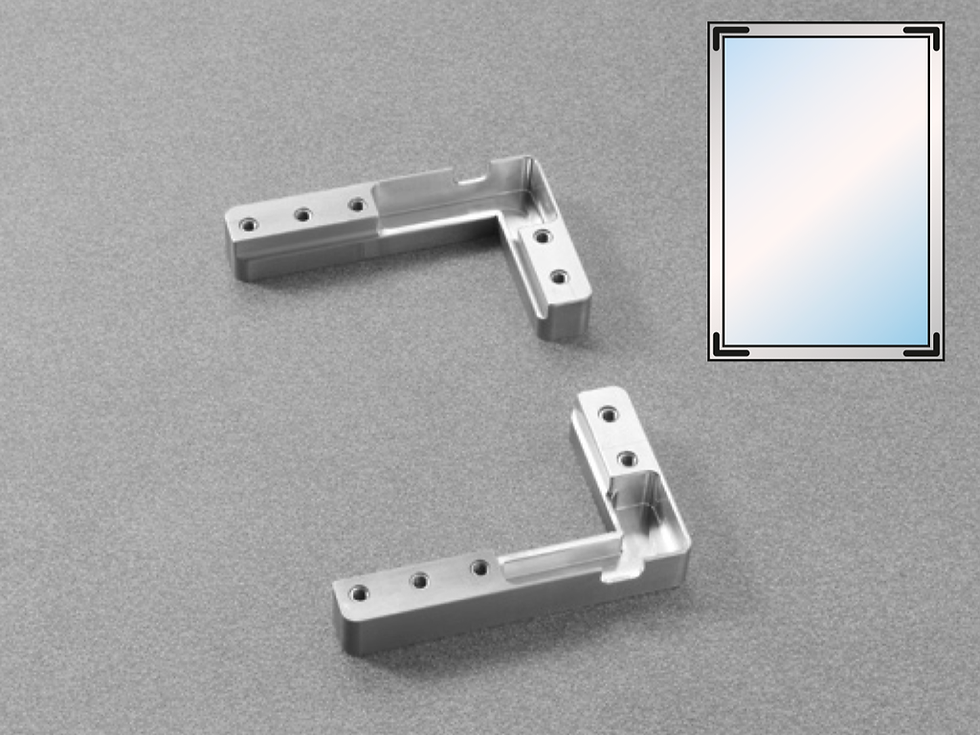

• Corner connectors for the frame assembly of the doors and the fixing of the hinge.
